Detail produk:
|

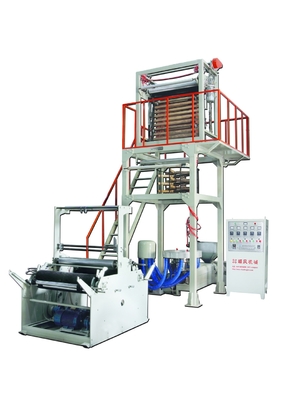

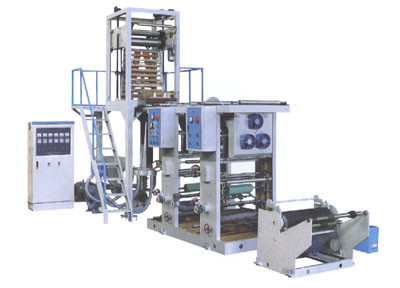

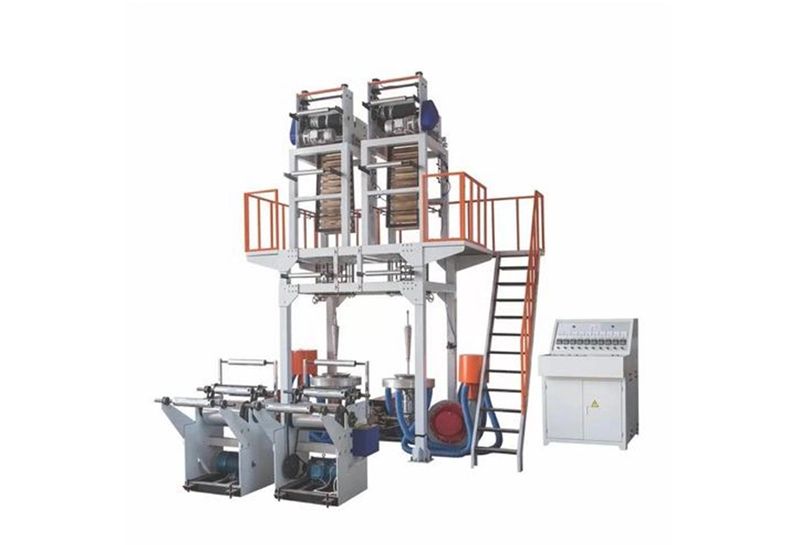

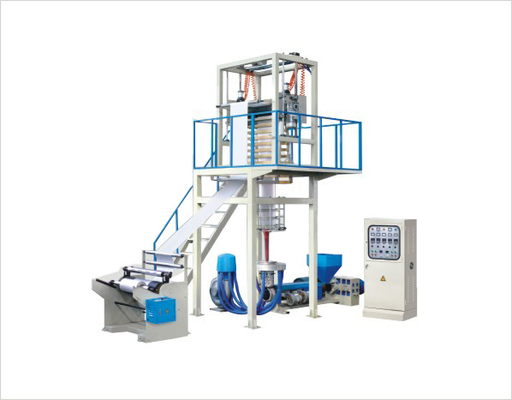

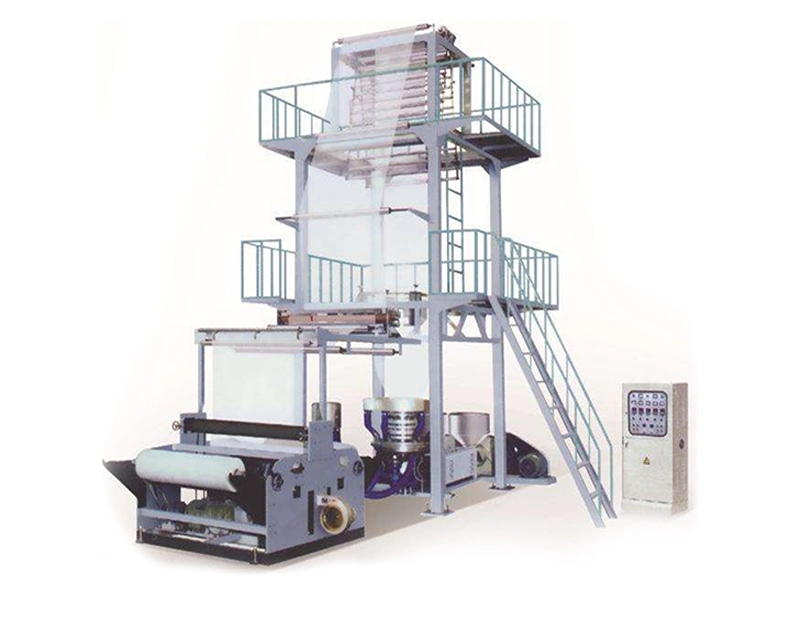

| Nama: | Harga Mesin Pembuatan Kantong Plastik Degradable Plastik Film Mesin Blowing Mesin Pengemas Mesin Pla | ||
|---|---|---|---|
| Menyoroti: | Mesin Pembuat Kantong Plastik Degradable,Mesin Kantong Plastik Degradable Plastik,Mesin Pengemas Film Blowing |
||
Fitur Produk
Parameter Produk
| model | HAIJING-45/650 | HAIJING-50/850 | HAIJING-55/1100 | HAIJING-65/1400 |
| Bahan baku yang berlaku | HDPE LDPE LDPE | |||
| Lebar produk | 300-600MM | 300-800MM | 400-1000MM | 600-1200MM |
| Ketebalan produk | 0,009-0,05MM | 0,009-0,05MM | 0,009-0,05MM | 0,01-0,05MM |
| 0,02-0,15MM | 0,02-0,15MM | 0,03-0,15MM | 0,03-0,15MM | |
| Ekstrusi | 55kg/jam | 70kg/jam | 85kg/jam | 110kg/jam |
| Diameter sekrup | Φ45 | Φ50 | Φ55 | Φ65 |
| Rasio aspek sekrup | 30:1 | |||
| Bahan sekrup | SACM-645/38 CRMOALA | |||
| Bahan barel | SACM-645/38 CRMOALA | |||
| Pendinginan barel | 250w | 250w | 250w | 250w |
| laju monitor | 15KW | 18,5KW | 22KW | 37KW |
| Kontrol suhu barel | 3 | 3 | 3 | 4 |
| Konsumsi daya rata-rata | 18 | 26 | 31 | 45 |
| Diameter kepala mati | Φ60/80MM | Φ80/100MM | Φ100/120MM | Φ120/150MM |
| Φ100/200MM | Φ100/250MM | Φ150/350MM | Φ150/450MM | |
| pengatur suhu | 3 tiga | |||
| cincin angin | 1 satu | |||
| kipas | 3 tiga | 3 tiga | 3 tiga | 4 tiga |
| Lebar gulungan traksi | 650MM | 850MM | 1100MM | 1400MM |
| Ekstraksi lebar film yang efektif | 600MM | 800MM | 1000MM | 1200MM |
| Naik turun bisa diangkat | 700mm | |||
| mengambil kecepatan | 10-100M/MIN | 10-100M/MIN | 10-80M/MIN | 10-80M/MIN |
| Ekstrak tenaga motor | 0,75KW | 0,75KW | 1.1KW | 1.5KW |
| Kekuatan melingkar | 6KW | 8KW | 10KW | 16KW |
| Kecepatan melingkar | 10-100M/MIN | 10-100M/MIN | 10-80M/MIN | 10-80M/MIN |
| ukuran tapak | 5.0*2.0*4.1M | 5.0*2.2*4.5M | 5,5*2,5*5,2 juta | 5.8*2.8*6.3M |
